Industrial
Nichia has LDs with a wide range of wavelengths (ultraviolet to blue, green, and red) and optical outputs. The LDs contribute to the high definition and throughput required for medical and industrial equipment.
Product Features
- Wide Range of Wavelengths: UV (375nm)~Green (540nm)
- Wide Range of Optical Output Options
- High Reliability
- A wide range of packaging solutions, including optical fiber-coupled products and multi-chip products.
Applications
Photolithography
370-435nm | 0.1-5W | Single or Multi-mode
Used as a light source for direct imaging photolithography devices and mainly in the manufacturing process of printed circuit boards (PCBs). This light source is necessary for forming electronic circuit wiring patterns on PCBs.
Product List
Life Science / Medical
370-660nm | 0.1-5W | Single or Multi-mode
Used in applications that identify or detect biomolecules through reflection, fluorescence, and excitation. Examples include flow cytometry and DNA sequencing. Also used for diagnosis and treatment of body tissues.
Product List
Module
370-660nm | 0.01-0.5W | Single-mode
LD modules are devices that use laser beams in combination with collimating lenses and other devices to effectively control and apply laser beams to specific applications. Examples of applications include life science and sensors.
Product List
Metrology / Inspection
370-660nm | 0.01-5W | Single or Multi-mode
LD also plays an important role in metrology and inspection applications. For example, used in confocal microscopy for high-resolution 3D images, particle counters, Raman spectrometry, and semiconductor inspection.
Product List
Printing
370-435nm | 0.1-5W | Single or Multi-mode
Used as a light source for the printing field of optical modeling such as 3D printers. It enables high precision and high speed modeling processes, and LDs with various wavelength can be used depending on materials with different sensitivities.
Product List
Material Processing / Heating
400-470nm | 5W- | Multi-mode
Used for material processing and heating. In particular, short-wavelength visible light can be efficiently absorbed in many materials, enabling high heat-input efficiency and high-quality processing with less thermal damage to the surrounding area.
Product List

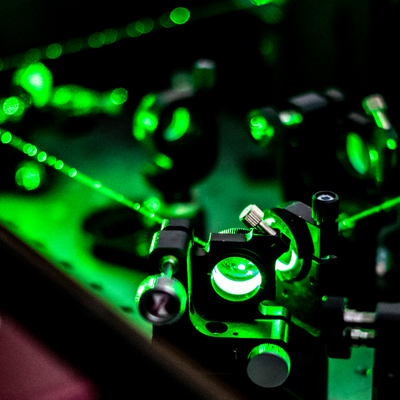

External Cavity - Quantum
370-660nm | 0.01-0.5W | Single-mode with AR-coating
A single-frequency laser can be achieved by integrating LDs with the desired gain bandwidth within an external cavity. This configuration is beneficial for applications requiring a narrow spectral linewidth and is suitable for quantum technologies utilizing atomic and ionic resonance.
Product ListProducts
TO Package
TO5.6mm / TO9.0mm
The standard package for semiconductor lasers. Laser light is emitted vertically through the aperture on the top surface at a beam angle specified for each model. Depending on the product, a photodiode and/or a Zener diode may be included.
Line up
TO Package with Lens
TO with a Collimation Lens / TO with a Fiber Receptacle
Optics are integrated with the TO package. Either by incorporating a collimation lens to ensure that the emitted laser light is collimated, or with a receptacle mechanism designed to facilitate the coupling of optical fibers.
Line up
Side Lead Package
The lead pins are mounted on the side of the package, and the laser beam is emitted horizontally from the side of the package. Its design enables the integration of high-power LD chips with long cavity lengths.
Line up
Multi-chip Package
OctoLas™ / QuaLas™
Multiple LD chips are integrated into a single package. The laser light is emitted in a vertical array. This enables more sophisticated integration within a smaller footprint compared to using individual packages.
Line up
Fiber-Coupled Laser Diode Unit
This unit precisely aligns laser beams from multiple LDs and couples them into a single optical fiber. It enables the extraction of high-power laser light from a fiber with a very small core diameter.
Line upProduct Search
Featured Technologies

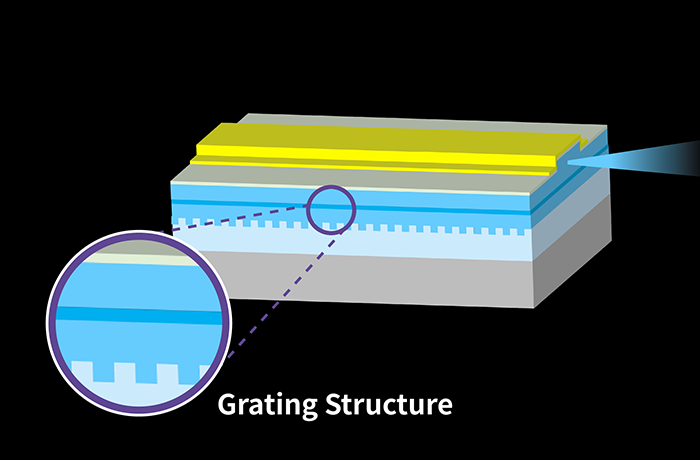

DFB (Distributed Feedback) LD
Transverse single-mode semiconductor laser in which a grating pattern is built near the active layer inside the laser chip along the waveguide direction. It enables single-frequency laser oscillation. It is useful for applications requiring narrow spectral linewidths, such as interferometric metrology and Raman spectroscopy.

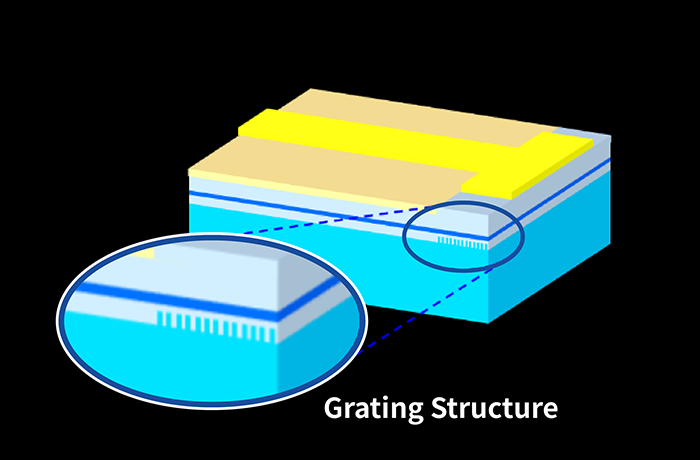

DBR (Distributed Bragg Reflection) Multi-Mode LD
A grating pattern is built into the front section of a high-power transverse multi-mode LD. It provides a narrower spectral linewidth than conventional Fabry-Pérot-type LDs, making it suitable for applications such as interferometric metrology and Raman spectroscopy. It is also well suited for wavelength beam combining techniques to achieve higher output power.

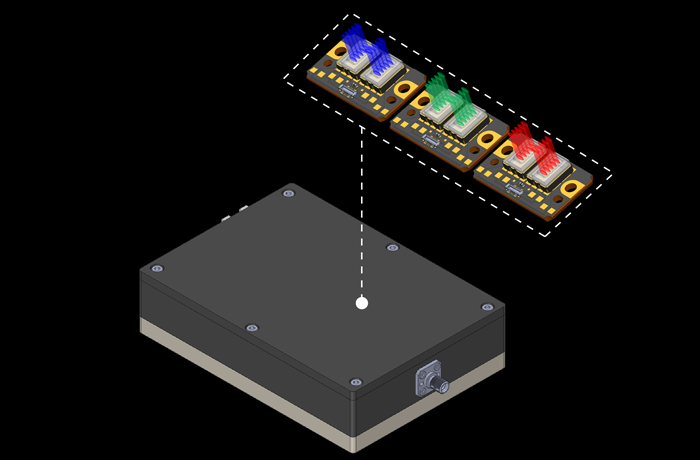

Fiber-Coupled Multi-Color Laser Unit (Featuring QuaLas™)
Laser beams from multiple QuaLas™ modules are coupled into a single optical fiber. Multiple wavelengths and output power levels are available by customizing the number of LD chips and their wavelengths in the QuaLas™ modules. Utilizing DBR-LDs enables highly precise spectral control. It is useful for applications requiring multiple wavelengths, such as wafer inspection, fluorescence, and other industrial lighting applications.
