Fiber-Coupled Laser Diode
- Several-Hundred-Watt-Class High Output Power
- Small-core Fiber Coupling
- Water-cooled Heatsink
Product Features

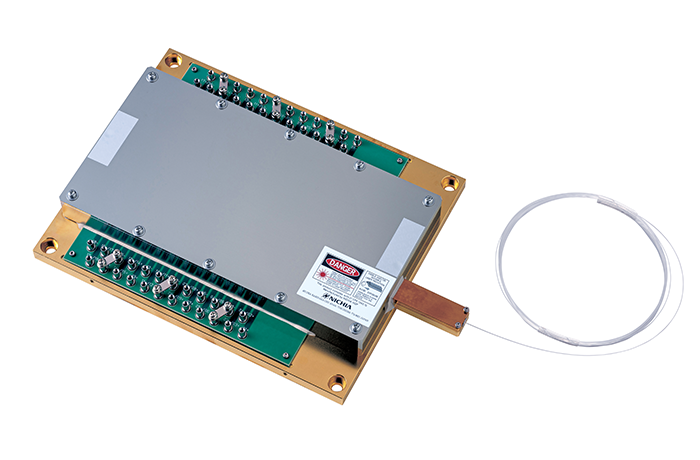

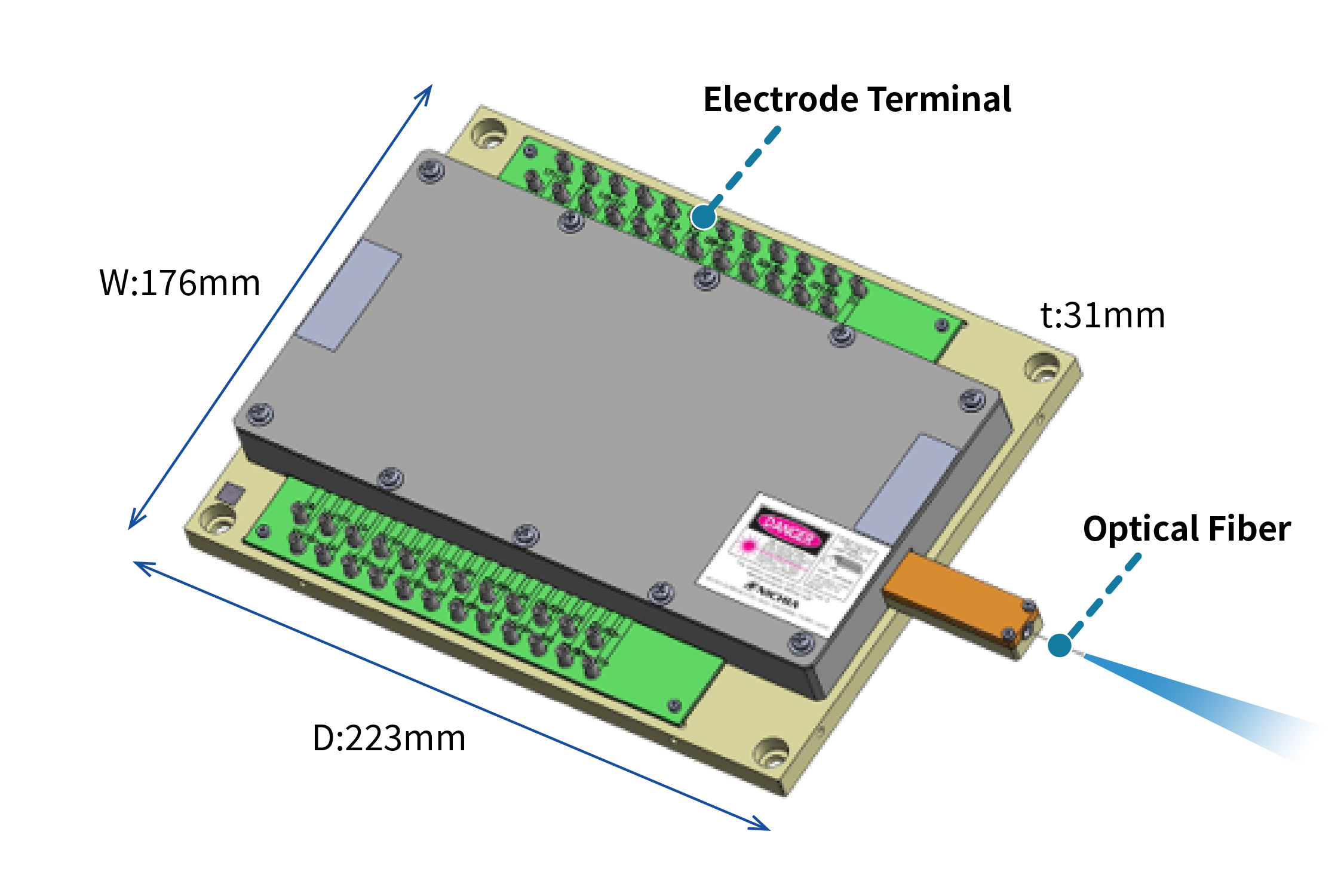

This laser source unit incorporates multiple laser diodes. The laser beams from the individual diodes are precisely aligned using optical lenses and mirrors, and combined into a single optical fiber. This enables the delivery of high optical output power through an optical fiber with a very small core diameter. The unit is also equipped with a water-coolable heatsink. In addition, terminals provided on both sides of the unit allow flexible customization of the electrical connections between the laser diodes.
Product Specification Example
NUBD321
Product Specification
| Items | Symbol | Spec (Typ.)* | Unit |
|---|---|---|---|
| Centroid Wavelength | λd | 465 | nm |
| Optical Output Power | Po | 550 | W |
| Forward Voltage (3 LDs in series) | VF3 | 12 | V |
| Forward Voltage (36 LDs in series) | VF | 145 | V |
| Numerical Aperture** | NA | 0.16 | - |
| Fiber Core Diameter | - | 110 | µm |
*IF=10.5A, TW (water)=25°C, CW
**NA is calculated from beam divergence at 86.5% encircled optical output power.
I-L Characteristics

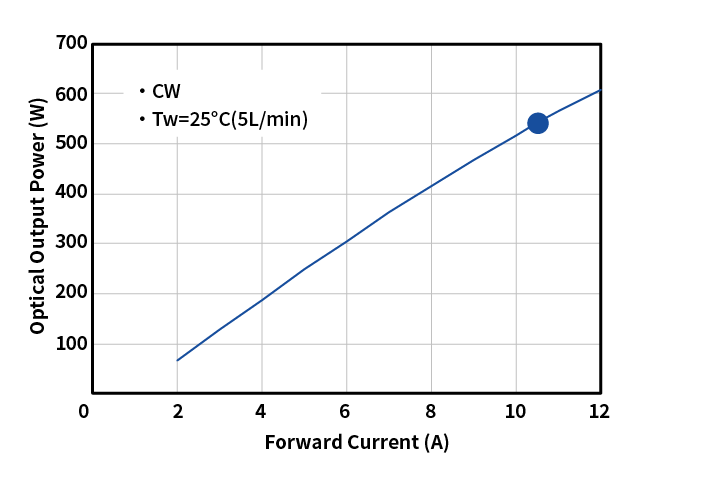

The graph shows the forward current versus optical output power characteristics of a fiber-coupled semiconductor laser product incorporating multiple 465nm laser diodes. Optical output power of up to 550W can be delivered through an optical fiber with a core diameter of 110µm.
Beam Profile

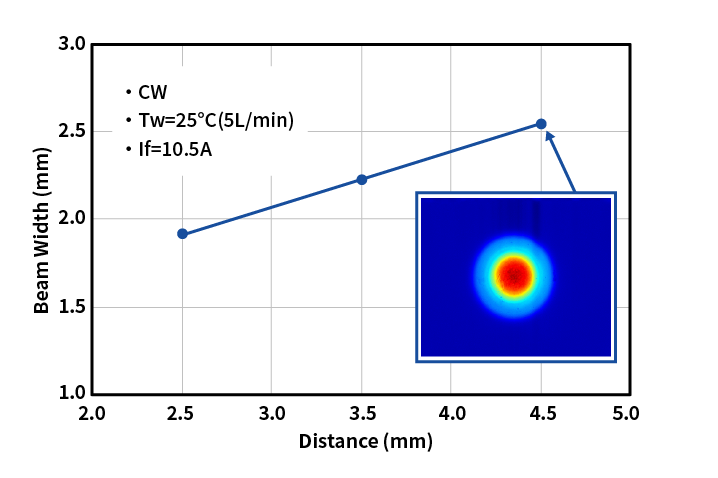

The graph shows the laser beam diameter as a function of distance from the end of a 110µm core optical fiber. The beam diameter is defined as the diameter enclosing 86.5% of the total optical output power.
Reliability

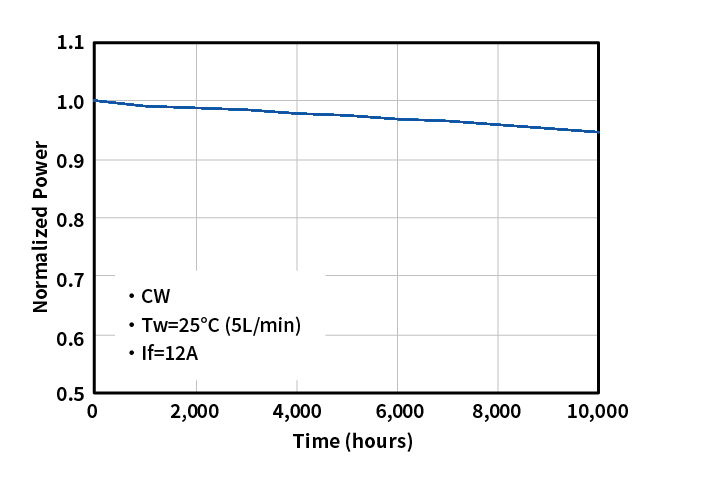

Optical output degradation remains minimal even during long-term continuous operation, with approximately 5% output power degradation after 10,000 hours of operation.
1"NUBD32" is Nichia's part number.
Example Applications
- Semiconductor Laser Systems
- Laser Welding and Cutting
- Metal 3D Printing (Additive Manufacturing)
- Laser Engraving, etc.
