Industrial

Nichia has LDs with a wide range of wavelengths (ultraviolet to green) and optical output.

The LDs contribute to the high definition and high throughput required for medical and industrial equipment.

产品特性

  • Wide range of Wavelengths: UV (375nm)~Green (532nm)
  • Wide range of optical output options
  • High reliability
  • Products compatible with optical fiber connections are also available

用途

Street Light
Street Light
Street Light
Street Light
Area Light
Downlight
laserprocessing
3dprinter
lithography
confocalmicroscope
module
flowcytometer
endoscope

适用产品

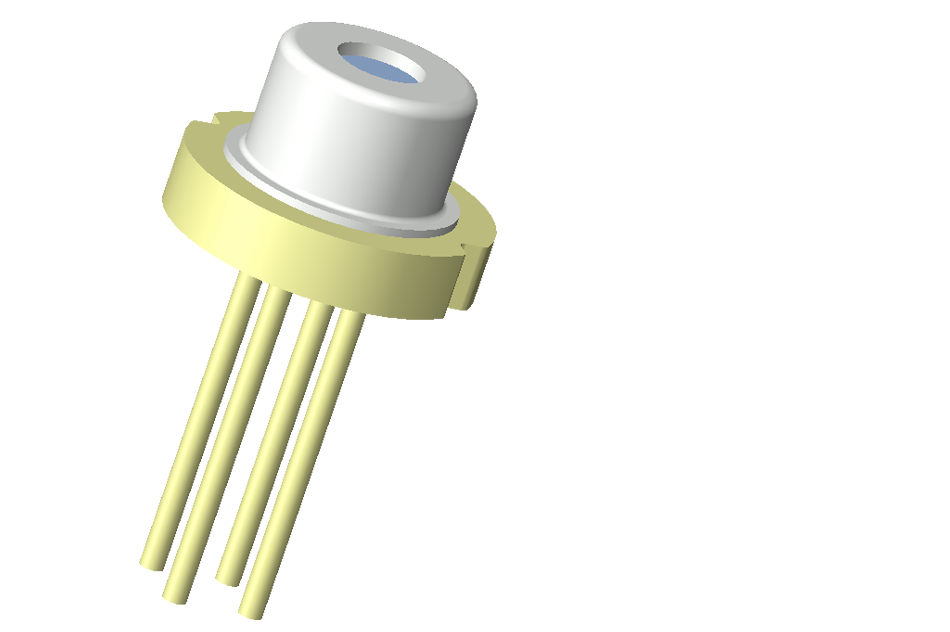

Single-mode LD
Color Part Number Spec. Operating Mode Wavelength
[nm]		 Optical
Output
Power
[mW]		 Current
[mA]		 Voltage
[V]		 Photo
Diode		 Zener
Diode		 RoHS FDA
Accession
Number
Min Max
UV NDU4116 APC 370 380 70 110 5.4 ✓ ✓ Compliant 0112221-055
NDU4316 APC 390 400 120 100 4.5 ✓ ✓ Compliant 0112221-072
Violet NDV4316 APC 400 410 120 120 4.8 ✓ ✓ Compliant 0112221-055
NDV4B16 APC 400 410 300 230 5.3 ✓ ✓ Compliant 0112221-056
NDV4A16 APC 420 425 120 100 5.2 ✓ ✓ Compliant 0112221-072
Blue NDB4116 APC 440 450 100 100 5.3 ✓ ✓ Compliant 0112221-053
NDB4816 APC 435 450 500 330 5.2 ✓ ✓ Compliant 0112221-090
NDB4916 APC 450 465 500 360 5.2 ✓ ✓ Compliant 0112221-090
Aquamarine NDA4116 APC 468 478 100 120 5.7 ✓ ✓ Compliant 0112221-054
NDA4216 APC 465 480 300 280 6.4 ✓ ✓ Compliant 0112221-082
Sky Blue NDS1316 APC 483 493 25 80 6.2 ✓ ✓ Compliant 0112221-061
NDS4116 APC 483 493 60 100 5.6 ✓ ✓ Compliant 0112221-055
NDS4216 APC 483 493 200 270 6.0 ✓ ✓ Compliant 0112221-054
Green NDG4216 APC 510 520 80 200 6.5 ✓ ✓ Compliant 0112221-057
NDG4716 APC 510 520 150 260 5.1 ✓ ✓ Compliant 0112221-091
Multi-mode LD
Color Part Number Spec. Operating Mode Wavelength
[nm]		 Optical
Output
Power
[mW]		 Current
[mA]		 Voltage
[V]		 Photo
Diode		 Zener
Diode		 RoHS FDA
Accession
Number
Min Max
UV NDU7216 APC 370 380 200 390 4.4 ✓ ✓ Compliant 0112221-054
NDU7375 APC 370 380 400 700 4.7 ✓ Compliant 0112221-083
Violet NDV7116 APC 400 405 600 550 4.1 ✓ ✓ Compliant 0112221-047
NDV7375 APC 400 405 1200 1100 4.1 ✓ Compliant 0112221-058
Blue NDB7K75 - ACC 440 455 3500 2300 4.3 ✓ Compliant 0112221-062
NDB7Y75 ACC 448 462 5000 3000 4.0 ✓ Compliant 0112221-090
NDB7Z75 ACC 462 472 5000 3500 4.1 ✓ Compliant 0112221-092
Aquamarine NDA7175 APC 468 478 1000 900 4.0 ✓ Compliant 0112221-072
Sky Blue NDS7175 APC 483 493 2000 1900 4.0 ✓ Compliant 0112221-084
Green NDG7D75 ACC 518 532 1500 1900 4.7 ✓ Compliant 0112221-092

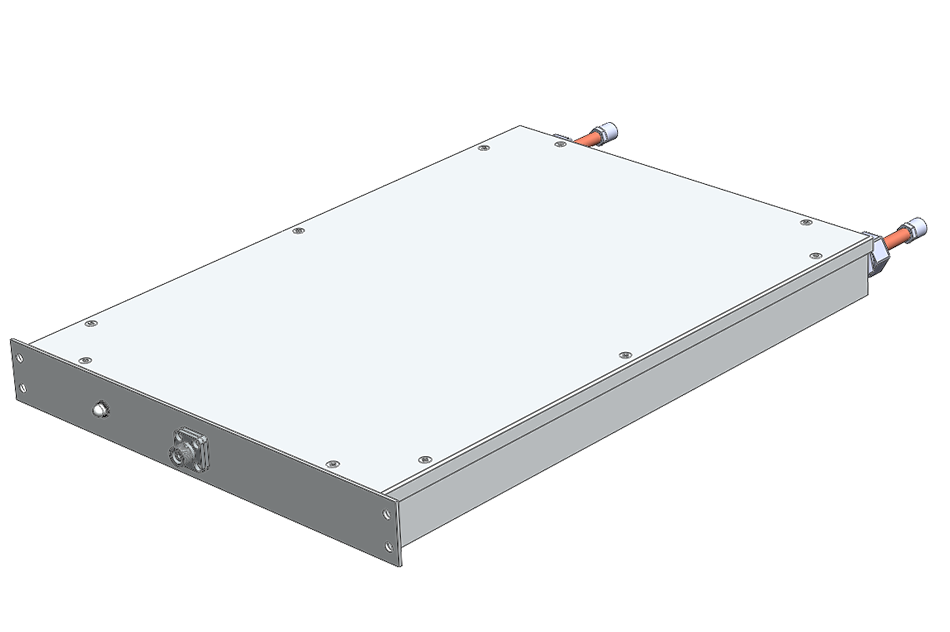

LD Slot Module
Part Number Spec. Wavelength
[nm]		 Optical
Output
Power
[mW]		 Power Supply Photo
Diode		 Diode Cooling Method RoHS FDA
Accession
Number
Min Max
NUU103E 370 380 6000 DC24V(5.6A) Water Cooling Under Investigation 0321196-011
NUV102E 400 406 1200 DC24V(680mA) ✓ Air Cooling Under Investigation 0321196-04
NUV103E 400 406 20000 DC24V(8.2A) Water Cooling Under Investigation 0321196-010

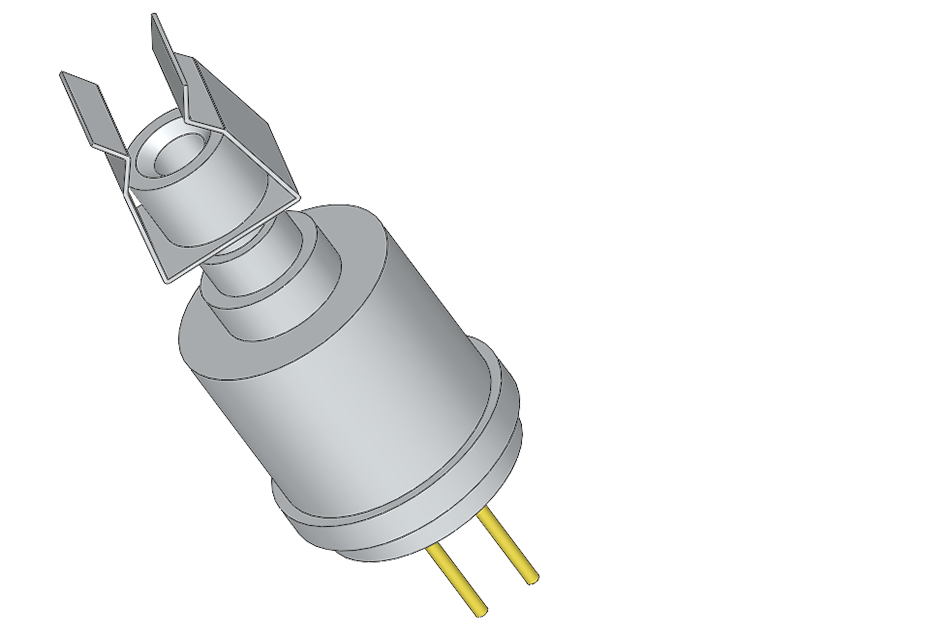

LD Receptacle Module
Part Number Spec. Operating Mode Wavelength
[nm]		 Optical
Output
Power
[mW]		 Threshold
Current
[mA]		 Current
[mA]		 Voltage
[V]		 Photo
Diode		 Ferrule Type RoHS FDA
Accession
Number
Min Max
NUU205E APC 370 380 150 200 390 4.5 ✓ SC Compliant 0720136-005
NUV203E APC 400 406 420 140 450 4.1 SC Compliant 0720136-004
NUV207E APC 400 410 240 30 210 5.1 ✓ SC Compliant 0720136-005
NUV209E APC 400 406 900 280 1000 4.3 SC Compliant 0720136-007
NUB206E ACC 445 450 1300 140 1200 5.0 SC Compliant 0720136-005

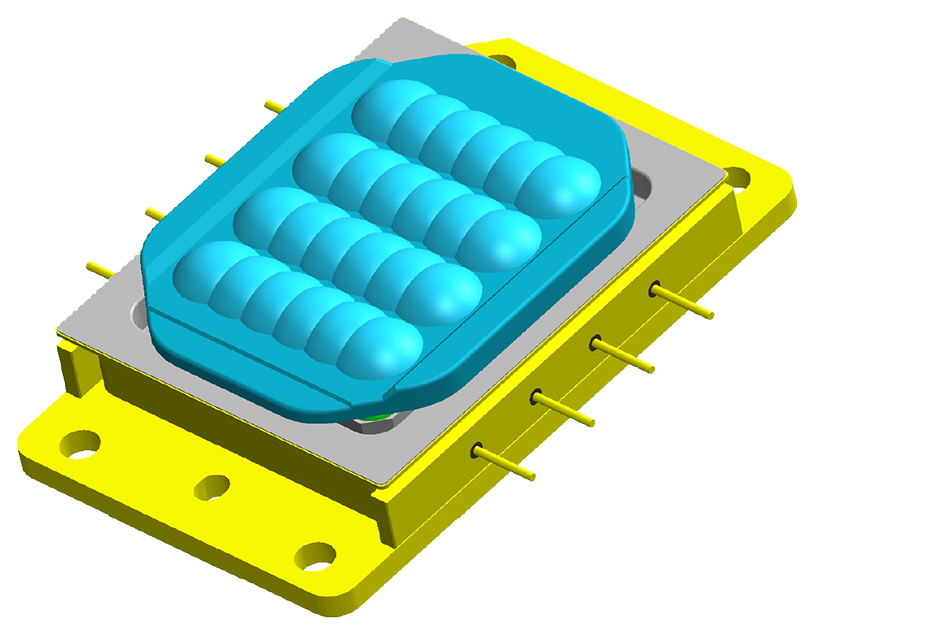

OctoLas™
Part Number Spec. Operating Mode Wavelength
[nm]		 Optical
Output
Power
[W]		 Threshold
Current
[mA]		 Current
[A]		 Voltage
[V]		 Photo
Diode		 Zener
Diode		 RoHS FDA
Accession
Number
Typ.
NUBM3HT ACC 455 137 220-420 3.3 (99) ✓ Compliant Under Processing
NUBM3JT ACC 465 110 300-550 3.3 (99) ✓ Compliant Under Processing
