Nichia's standard LEDs were designed and developed in collaboration with the National Institute of Advanced Industrial Science and Technology (AIST) as dedicated calibration standards for the photometric and radiometric quantities of LED products. These standard LEDs need to be calibrated using appropriate procedures in order to establish a traceability system from the national standards for the desired photometric and radiometric quantities. In response to requests from Nichia's customers, Nichia also provides JCSS accredited calibration services for standard LEDs.(Available in Japan only)

Standard LED for total spectral radiant flux

Photograph Type Color PDF IF
(mA)
Forward Voltage
Typ
VF(V)
Luminous Flux
Typ
(lm)
Radiant Flux
Typ
(mW)

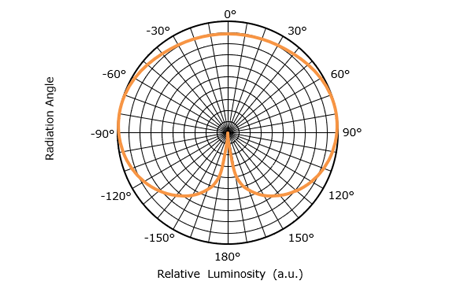

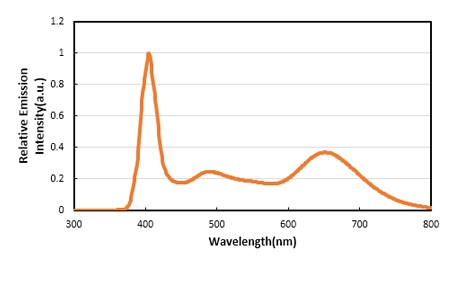

Spectrum Directivity
NLSW30S01D white

200

46.2

185

1250

NLSW01S01A white

500

3.4

6.9

55

Standard LED for luminous flux and radiant flux

Photograph Type Color PDF IF
(mA)
Forward Voltage
Typ
VF(V)
Luminous Flux
Typ
(lm)
Radiant Flux
Typ
(mW)
Spectrum Directivity

High Power type
NLSL06S01A warm white

350

3.00

68

260

NLSB06S01 blue

350

3.40

15

225

NLSG06S01 green

350

3.40

44

90

NLSR06S01 red

240

2.20

16

105


Standard type
NLHW01S02 white

20

2.90

1.2

-

NLHB01S02 blue

20

2.90

0.3

-

NLHG01S02 green

20

2.90

0.9

-

NLHR01S02 red

20

2.10

0.7

-

Photograph Type Rank PDF IF
(mA)
Forward Voltage
Typ
VF(V)
Radiant Flux
Typ
(mW)
λp
(nm)
Spectrum Directivity

UV type
NLSU04S01B U365

200

13.40

450.0

368

NLSU04S01B U385

200

13.10

700.0

388

NLSU04S01B U405

200

12.40

850.0

408

Standard LED for luminous intensity

Photograph Type Color PDF IF
(mA)
Forward Voltage
Typ
VF(V)
Luminous Intensity
Typ
(cd)
Spectrum Directivity
NLPW01S03A white

20

2.90

1.58

NLPB01S03A blue

20

2.90

0.49

NLPG01S03A green

20

2.90

0.80

NLPR01S03A red

20

2.00

0.85
