Product Search

Series	：	121S

LED (Products：15 Results)

	Part No.	Production Status	Spec.	Size L×W×H (mm)	Color		I_F (mA)	V_F Typ(V)	CRI		Chromaticity Coordinate		Luminous Flux Typ(lm)	Radiant Flux Typ(mW)	Luminous Intensity Typ(cd)	Directivity (degree)
	Part No.	Production Status	Spec.	Size L×W×H (mm)	Color		I_F (mA)	V_F Typ(V)	Ra Min	R9 Min	X	Y	Luminous Flux Typ(lm)	Radiant Flux Typ(mW)	Luminous Intensity Typ(cd)	Directivity (degree)
	NC2W121G			2.6×3.1×0.75			1000	6.5			0.3292	0.3439	870			120
	NC2W121G-SC			2.6×3.1×0.75			1000	6.5			0.3292	0.3439	705			120
	NC2W121F			2.6×3.1×0.75			1000	6.5			0.3292	0.3439	820			120
	NC3W121F			3.75×3.1×0.75			1000	9.75			0.3292	0.3439	1230			120
	NC4W121F			4.9×3.1×0.75			1000	13.0			0.3292	0.3439	1640			120
	NC5W121F			6.05×3.1×0.75			1000	16.25			0.3292	0.3439	2050			120
	NC2W121D			2.6×3.1×0.75			1000	6.5			0.3292	0.3439	780			120
	NC3W121D			3.75×3.1×0.75			1000	9.8			0.3292	0.3439	1170			120
	NC4W121D			4.9×3.1×0.75			1000	13.0			0.3292	0.3439	1560			120
	NC5W121D			6.05×3.1×0.75			1000	16.3			0.3292	0.3439	1950			120
	NC2W121D-S1			2.6×3.1×0.75			1000	6.5			0.3292	0.3439	740			120
	NC3W121D-S1			3.75×3.1×0.75			1000	9.8			0.3292	0.3439	1110			120
	NC4W121D-S1			4.9×3.1×0.75			1000	13.0			0.3292	0.3439	1480			120
	NC5W121D-S1			6.05×3.1×0.75			1000	16.3			0.3292	0.3439	1850			120
	NC5W121A			6.25×2.5×0.75			1000	17			0.327	0.337	1550			120

RoHS Directive and Pb-free Soldering

All Nichia LEDs comply with RoHS Directive and are Pb-free soldering available.

Other points to note

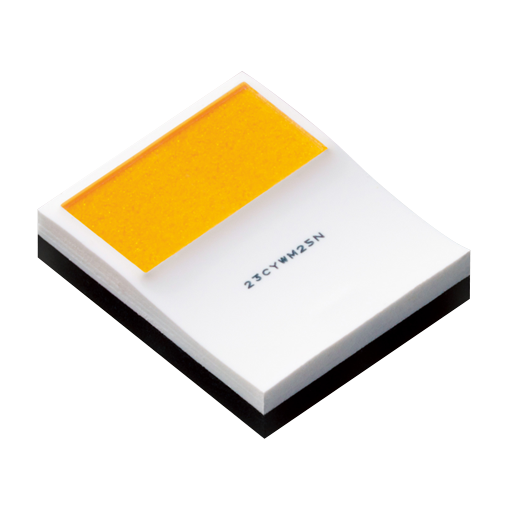

The photo may differ from the actual product.
The 'Typ.' in the products page indicates typical value so that is not under guarantee.
